ADO Connection

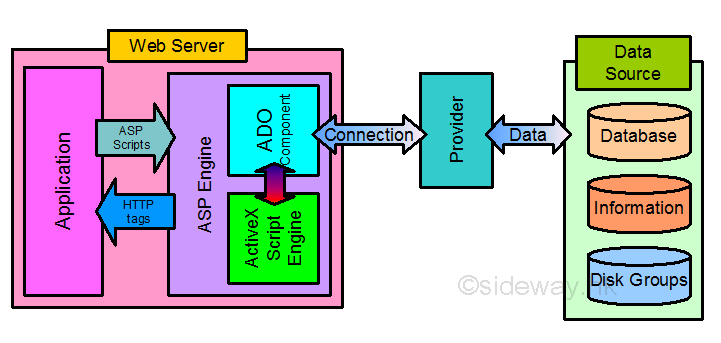

In ASP, the connection of an application to a database or a data file is bridged by the ActiveX Data Objects Component (ADO) throught utilizing a provider to do the job. When creating a connection instance to a data source, parameter "ConnectionString" is used to specify the string value of the connection information.

ConnectionString of a Connection

The parameter "ConnectionString" is also defined as the property of a connection object which can be used to set and return the value of ConnectionString. The optional parameter "ConnectionString" is a series of argument = value statements separated by semicolons. Although ADO only supports five types of arguments, any other arguments will also be passed to the provider directly by the ADO without carrying out any process. The five valid arguments of parameter "ConnectionString" or the "ConnectionString Property" can be

Argument	Description
Provider=	To specify the name of a provider to use for the connection
File Name=	To specify the name of a provider-specific file, e.g. a persisted data source object, containing preset connection information.
Remote Provider=	To specify the name of a provider to use for the connection when opening a client-side connection for Remote Data Service only.
Remote Server=	To specify the path name of the server to use for the connection when opening a client-side connection for Remote Data Service only.
URL=	To specify an absolute URL as the connection string to identify a resource, such as a file or directory, for the connection.e

Formating Rules of ConnectionString

Source: https://www.connectionstrings.com/formating-rules-for-connection-strings/

All blank characters, except those placed within a value or within quotation marks, are ignored
Blank characters will though affect connection pooling mechanism, pooled connections must have the exact same connection string
If a semicolon (;) is part of a value it must be delimited by quotation marks (")
Use a single-quote (') if the value begins with a double-quote (")
Conversely, use the double quote (") if the value begins with a single quote (')
No escape sequences are supported
The value type is not relevant
Names are case iNsEnSiTiVe
If a KEYWORD=VALUE pair occurs more than once in the connection string, the value associated with the last occurrence is used
However, if the provider keyword occurs multiple times in the string, the first occurrence is used.
If a keyword contains an equal sign (=), it must be preceded by an additional equal sign to indicate that it is part of the keyword.
If a value has preceding or trailing spaces it must be enclosed in single- or double quotes, ie Keyword=" value ", else the spaces are removed.

Microsoft JET OLE DB Provider on 64 bit systems

The Microsoft OLE DB Provider for JET and the JET ODBC driver are available in 32-bit versions only. Althogh web pages can be run on 32/64 bit systems, an application with JET driver can't be run on 64 bit systems because there is no corresponding JET driver on 64 bit systems.

Ways to resolve the problems are

Run the application using JET driver (in 32-bit only) in WoW64 subsystem to emulate 32-bit mode on 64 bit systems.
Configure the web sites application pool of IIS (e.g. IIS 7) to run application in 32-bit mode.
Change the driver of Microsoft OLE DB Provider of the application from JET driver to ACE driver, which are available in both 32-bit and 64-bit versions. The suggested solution is to use the drivers of SQL Server Express Edition as a general replacement for JET driver.

Microsoft OLE DB Provider on both 32/64 bit systems

The Microsoft JET OLEDB Provider with only 32-bit driver is depricated by the Microsoft ACE OLEDB Providers with both 32-bit and 64-bit drivers.

Downloads of Microsoft Data Access Components

Download 2007 Office System Driver: Data Connectivity Components from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=23734~~last updated 11 Jun 2017~~
Download Jet 4.0 Service Pack 8 (SP8) for Windows Server 2003 64 Bit Edition (KB829558) from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=8125~~last updated 16 Jun 2017~~
Download Microsoft Access Database Engine 2010 Redistributable from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=13255~~last updated 07 Jun 2017~~
Download Microsoft Access Database Engine 2016 Redistributable from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=54920~~last updated 11 Jun 2017~~
Download Microsoft Data Access Components (MDAC) 2.8 Software Development Kit from Official Microsoft Download Center http://www.microsoft.com/en-us/download/details.aspx?id=21995~~last updated 11 Jun 2017~~
Download Microsoft Data Access Components (MDAC) 2.8 SP1 from Official Microsoft Download Center http://www.microsoft.com/en-us/download/details.aspx?id=5793~~last updated 07 Jun 2017~~
Download Microsoft Data Access Components (MDAC) Security Patch MS04-003 (32-bit) from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=13522~~last updated 07 Jun 2017~~
Download Microsoft Data Access Components (MDAC) Security Patch MS04-003 (64-bit) from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=9990~~last updated 11 Jun 2017~~
Download Microsoft SQL Server 2005 Express Edition from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=21844~~last updated 06 Jun 2017~~
Download Microsoft SQL Server 2005 Express Edition with Advanced Services Service Pack 2 from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=12980~~last updated 16 Jun 2017~~
Download Microsoft® SQL Server® 2008 Express from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=1695~~last updated 06 Jun 2017~~
Download Microsoft® SQL Server® 2012 Express from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=29062~~last updated 06 Jun 2017~~
Download Microsoft® SQL Server® 2012 Service Pack 3 (SP3) Express from Official Microsoft Download Center https://www.microsoft.com/en-us/download/details.aspx?id=50003~~last updated 07 Jun 2017~~
