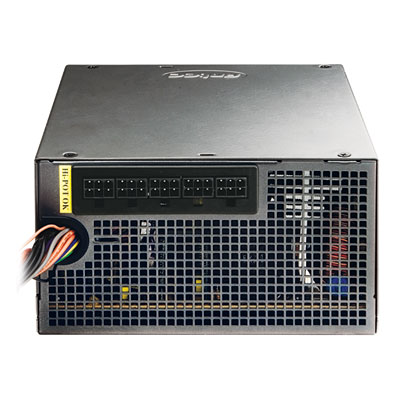

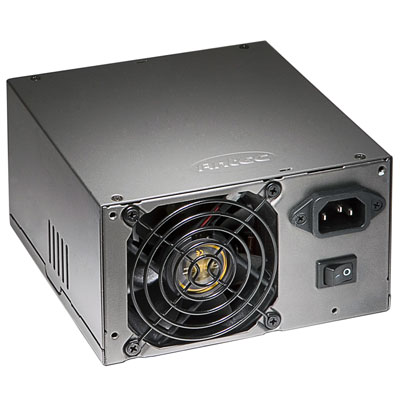

NeoPower 650

(information from Antec )

Specifications:

INPUT
Input Voltage	100-240VAC +/-10%
Input Frequency Range	47Hz-63Hz
Efficiency	up to 85%
OUTPUT
Voltage	+3.3V	+5V	+12V1	+12V2	+12V3	+5VSB	-12V
Maximum Load	24A	24A	19A	19A	19A	3.0A	0.8A
Load Reg	+/-3%	+/-3%	+/-3%	+/-3%	+/-3%	+/-3%	+/-6%
Ripple V(p-p)	50	50	120	120	120	50	120
REMARKS
Connectors	1x20+4pin; 1x4pin ATX 12V; 1x8pin EPS 12V; 1x6+2 PCI-E; 1x6 Pin PCI-E; 4xSATA; 6xMolex; 2xFloppy
Features	* NVIDIA SLI-ready certified * AQ5 - 5 year warranty * High Efficiency, Super Quiet Operation - So highly efficient (up to 85%), one super-silent 80mm fan keeps NeoPower cool * Advanced Cable Management System - Improves internal airflow and reduces system clutter by allowing you to use only the cables you need * Universal Input with Active PFC - Use anywhere in the world without worrying about input voltages; Active PFC improves voltage stability and delivers environmentally-friendlier power * Dedicated Power Circuitry - Delivers safer, more reliable output to your system's delicate components. Includes dedicated voltage outputs, triple +12V output circuits, voltage feedback circuitry, and tighter +-3% regulation for improved system stability * Supports ATX12V v2.2 and EPS12V systems (only 500, 550 and 650 models); backward compatible with all ATX12V systems * Three +12V output circuits provide maximum stable power for the CPU independently of the other peripherals * Accurate power rating allows NeoPower to deliver its full rated power, 24 hours a day rated at 50C * PCI Express graphics card power connector (Dual connectors for NeoPower 500, 550 and 650 models) * Low-speed 80mm fan delivers whisper-quiet cooling and ensures quiet operation by varying fan speed in response to load and conditions * Industrial grade protection: OVP (Over Voltage Protection), UVP (Under Current Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection) * Approvals: UL, CUL, CE, CB, FCC Class B, TuV, CCC, C-tick * MTBF: 80,000 hours * Unit dimensions: - 3.4"(H) x 5.9"(W) x 5.9"(D) - 8.6cm(H) x 14.9cm(W) x 14.9cm(D) * Package dimensions: - 8.3"(H) x 9.1"(W) x 4"(D) - 21.1cm(H) x 23.1cm(W) x 10.2cm(D) * Weight: - Net: 5 lb / 2.2 kg - Gross: 5.6 lb / 2.5 kg
